10-50kg Bag Coal Briquettes Automatic Weighing Packaging Machine

Short Description:


Product Detail

Contact us

FAQ

Product Tags

Brief introduction

The bagging scale is specially designed for automatic quantitative weighing and packaging solutions for all kinds of machine-made carbon balls and other irregular shaped materials. The mechanical structure is strong, stable and reliable. It is especially suitable for continuous weighing of irregular shaped materials such as briquettes, coals, log charcoal and machine-made charcoal balls. The unique combination of feeding method and feeding belt can effectively avoid damage and prevent blocking and ensure the high accuracy. Easy maintenance and simple structure.

The equipment has novel structure, reasonable precision control, fast speed and high output, which is especially suitable for coal manufacturers with an annual output of more than 100,000 tons.

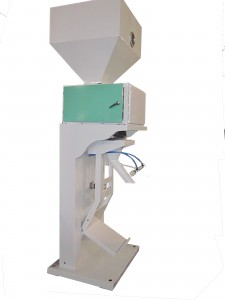

Product pictures

1671949225451

Technical parameter

Accuracy + / – 0.5-1% (Less than 3 pcs material, depending on the material characteristics)
Single scale 200-300 bags / h
Power supply 220VAC or 380VAC
Power consumption 2.5KW~4KW
Compressed air pressure 0.4 ~ 0.6MPa
Air consumption 1 m3 / h
Package range 20-50kg/bag

Details

1671949168429

Applicable materials

1671949205009

Company profile

工程图1

包装机生产流程



Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors, telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmentally friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.
