Automatic vertical form fill seal flour milk pepper chili masala spices powder packing machine
Performance characteristics:
·It is composed of bag making packaging machine and screw metering machine
·Three side sealed pillow bag
·Automatic bag making, automatic filling and automatic coding
·Support continuous bag packaging, multiple blanking and punching of handbag
·Automatic identification of color code and colorless code and automatic alarm
Packing Material:
Popp / CPP, Popp / vmpp, CPP / PE, etc
Video:
Applicable materials：
Automatic packaging of powder materials, such as starch, milk powder ,chicken powder, spices, concentrated washing powder, Pepper powder .Chili powder,Spices Powder,masala powder, Leaven Enzyme Soda Powder,Wheat Flour, Almond powder Tapioca Starch,
Cornmeal, Cocoa Powder.
Introduction of main machines：
520 Automati vertical powder packing machine
Technical features:
Multi language interface, easy to understand.
Stable and reliable PLC program system.
Can store 10 recipes
Servo film pulling system with accurate positioning.
Vertical and horizontal sealing temperature is controllable, suitable for all kinds of films.
Various packaging styles.
Synchronization of filling, bag making, sealing and coding.
VFFS .
It is for forming pillow bag,gusset bag,four edge bags and fill powder from auger filler.
Printing date,sealing and cutting.
We have 320VFFS,420VFFS,520VFFS,620VFFS,720VFFS,1050VFFS for option
Technical parameters:
|
Model |
DCS-520 |
|
Length of bag |
50-390mm(L) |
|
Width of bag |
50-250mm(W) |
|
Width of film |
520mm |
|
Packing speed |
15-60bag/min |
|
Air pressure |
0.65mpa |
|
Air consumption |
0.3m³/min |
|
Power supply |
220VAC/50/60Hz |
|
Power |
2.2KW |
|
Dimension |
1080(L) ×1500(W) ×1600(H)mm |
|
Weight |
650Kg |
Screw metering machine：
Technical parameters:
|
Model |
BS-50L |
|
Capacity of hopper |
50L |
|
Weight range |
200-1000g |
|
Accuracy |
±2% |
|
Filling speed |
40-120bag/min |
|
Power supply |
220V 50/60HZ |
|
Power |
1.7kw |
|
Weight |
130kg |
|
Dimension |
860×460×880mm |
Main features:
1. The material box can be easily disassembled and washed without tools;
2. Servo motor and servo drive control screw;
3. All stainless steel structure;
4. Equipped with height adjustment hand wheel, it is convenient to adjust the height of the whole machine;
5. Replaceable screw accessories can adapt to a variety of materials from ultra-fine powder to small particles.

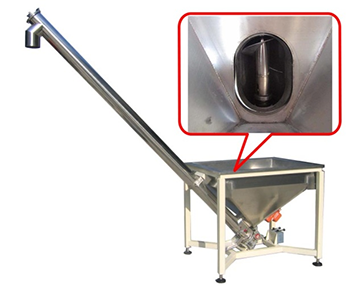

Screw feeding machine
Technical parameters：
|
Name |
Screw feeding machine |
|
Feeding capacity |
3m³/hour |
|
Power |
2.5KW |
|
Diameter of screw |
114mm |
|
Hopper capacity |
230L |
|
Power supply |
220V 50/60HZ |
|
Weight |
140 KG |
|
Dimension |
(L)1023mm*(W)823mm*(H)870mm |
Belt conveyor for finished products
Technical parameters：
|
Speed |
30m/min |
|
Belt material |
PP belt (Food grade) |
|
Power supply |
220V,50HZ |
|
Power |
40W |
|
Dimension |
1600mm(L)*520mm(W)*1000mm(H) |

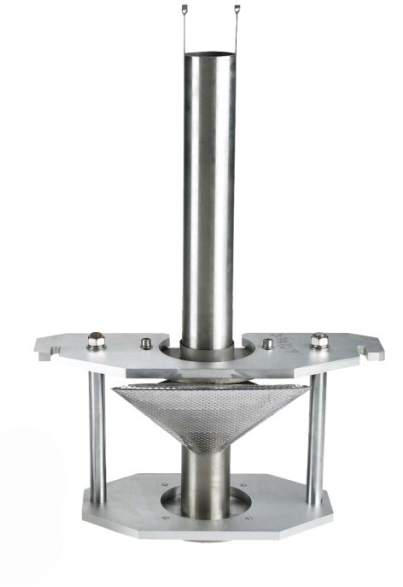

Bag forming machine
