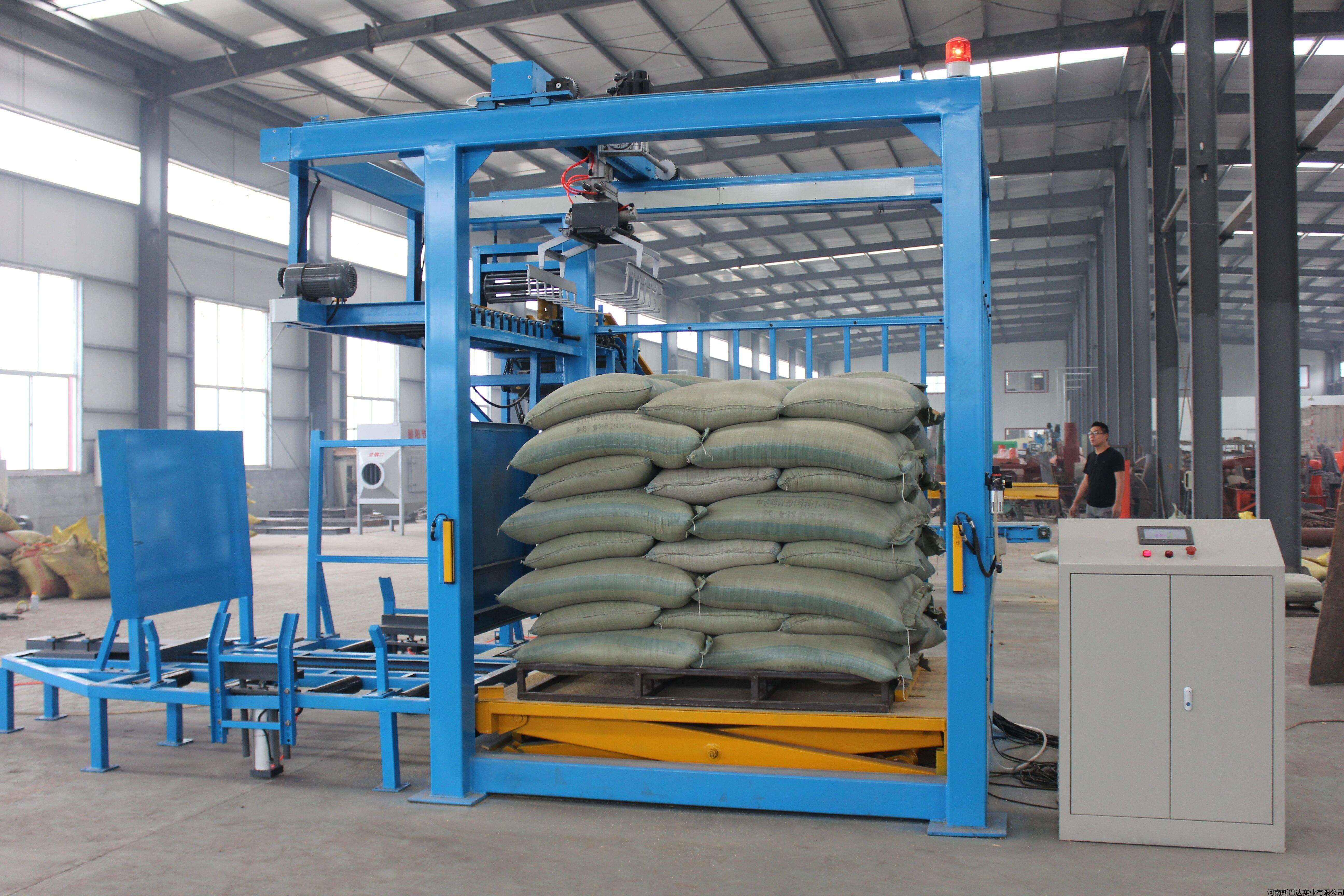

Easy Operating 40kg 50kg Automatic Bag Palletizer Machine

Short Description:


Product Detail

Contact us

FAQ

Product Tags

Product overview
Low-Level and High-Level Palletizers
Both types work with conveyors and a feed area that receives products. The difference between the two is that low-level load products from the ground level and high-level load products from above. In both cases, products and packages arrive on conveyors, where they are continuously transferred to and sorted on the pallets. These palletizing processes may be automatic or semi-automatic, but either way, both are faster than the robotic palletizing process.

High position palletizer is used behind the packaging scale. In front of the palletizer, it can be equipped with bagging machine, boxing machine, sealing machine, fully automatic bagging machine, metal detector, weight recheck and other equipment.

The main components of the automatic palletizer are Summary conveyor, climbing conveyor, indexing machine, marshalling machine, layering machine, elevator, pallet warehouse, pallet conveyor, pallet conveyor and elevated platform, etc.

                                 Automatic Palletizing Production Line Common Plan

palletizing production line common plan

Advantages of high-level automatic bag palletizer machine

1. High level automatic palletizer adopts linear coding, with fast palletizing speed.

2. The bag palletizer robot adopts servo coding mechanism to achieve any palletizing type, which is suitable for the characteristics of many bag types and various coding types. The servo bag dividing mechanism is smooth, reliable and does not impact on the bag body, which can protect the appearance of the bag body to the maximum.

3. The bag turning of the automatic packaging palletizer is realized by the servo steering machine, compared with the bag stopper turning, it will not cause impact on the bag body and will not damage the appearance of the bag body.

4. Intelligent servo palletizer palletizer has low power consumption, fast speed and beautiful palletizing type to save operation cost

5.The cement palletizing robot adopts heavy pressure or vibrating leveler to squeeze or vibrate the bag body smoothly, shaping effect

6. High level depalletizer can adapt to multiple bag types and multiple code types, and the change speed is fast (within 10 minutes to complete the production variety change)

Technical parameters

Item Content
Product Name Single Station palletizer
Weighing Range 10kg/20kg/25kg/50kg
Packing Speed 400-500 packs/hour
Power AC380V +/- 10% 50HZ or customized
Air pressure requirement 0.6-0.8 Mpa
Host size L3200*W2400*H3000mm
Number of layers 1-10 or customized

common forms of palletizing

Application
Fertilizer, feed, flour, rice, plastic bags, seeds, laundry detergent, cement, dry mortar, talcum powder, poly slag agent and other big bag products.

Related machines

低位&码垛机器人

Other auxiliary equipment

10 Other Other related equipment

Company profile

company profile
