Flour Grain Valve Bag Filling Machine Automatic Powder Filling And Sealing
Description:
Valve bag packing machine is mainly suitable for powders and granules, such as tile adhesive, dry mortar, titanium dioxide, flour or plastic articles, etc.
Vacuum type valve bag filling machine DCS-VBNP is specially designed and manufactured for superfine and nano powder with large air content and small specific gravity. Characteristics of the packaging process no dust spillover, effectively reduce the environmental pollution. Packaging process can achieve high compression ratio to fill materials, so that the shape of the finished packaging bag is full, the packaging size is reduced, and the packaging effect is particularly prominent. Representative materials such as silica fume, carbon black, silica, superconducting carbon black, powdered activated carbon, graphite and hard acid salt, etc.
Technical Parameters:
| Model | DCS-VBNP |
| Weight range | 1～50kg/Bag |
| Accuracy | ±0.2～0.5% |
| Packing speed | 60～200 bag/hour |
| Power | 380V 50Hz 5.5Kw |
| Air consumption | P≥0.6MPa Q≥0.1m3/min |
| Weight | 900kg |
| Size | 1600mmL × 900mmW × 1850mmH |

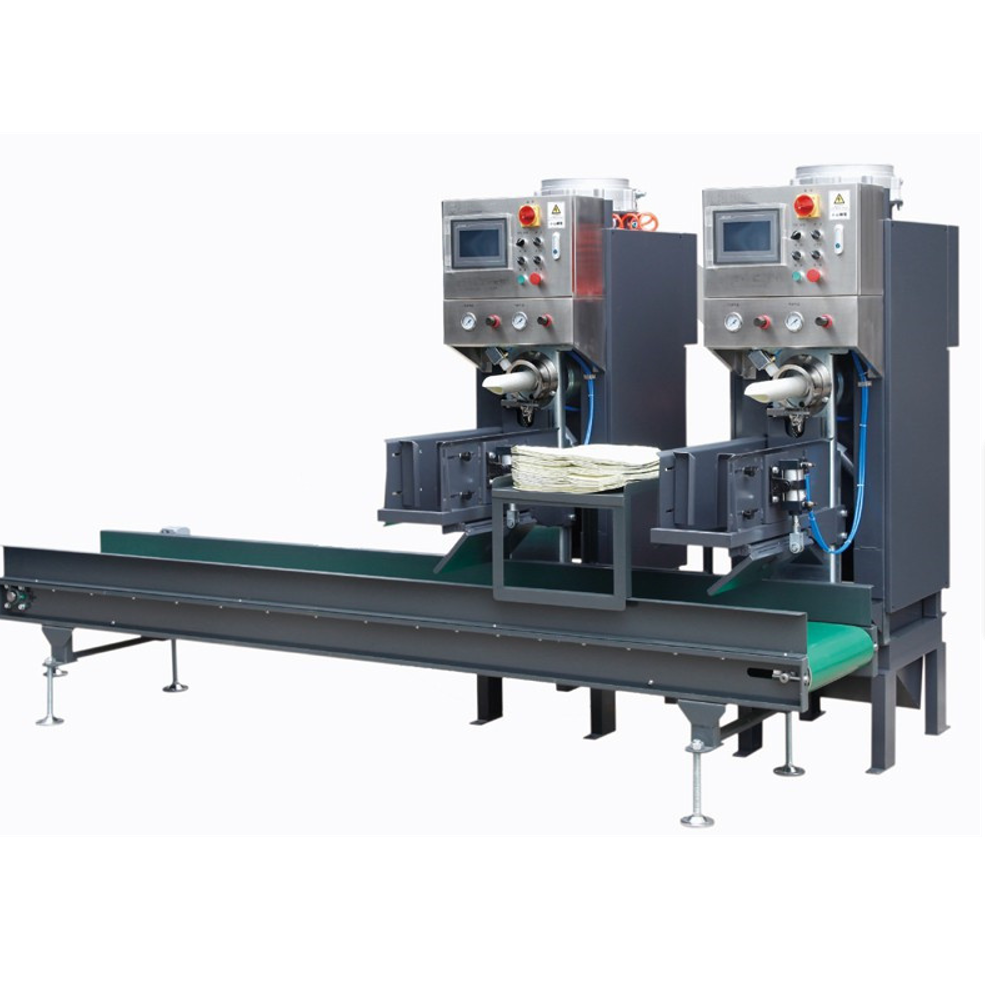

Product display
About us
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors, telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
